Finishing the rear right corner

I could not resist working some more on the car.
So I did.

 And I started with some more work on the piece I started yesterday. Hammering, shrinking, bending, cutting and comparing it against the old part.

 Then some more and some welding and voilà a new part is finished.

 Next I drilled some holes and painted it for rust protection.
Then the welding started.

 After the welding was finished I did some grinding and some final shaping to get it near perfect. Then some paint was sprayed on to protect it.

 So next I started with the left corner.

 After cutting the outside part away you are able to see what damage the rust had done to the metal behind.

 I cut out the bad part  and made a new piece that fit right in.

 Welded it in place and ground the welds flush.

And then painted it.
Next time I will make the last part for this cabin.

Dashboard.

At last I had a day to do some more work on the car.

 So I prepared a good part of the piece that I cut out earlier to get access and welded it in place.

 Then I made a new part to replace the bad part of that piece and tacked it in place.

Then I ground all welds flat and applied some protective paint. This is looking much better than it was before.

 Some time before Christmas the new dashboard arrived. So I prepared it and held it in place with some vise-grips and some bolts to check the fitment of the part.

  And then I welded it in place and ground all the welds. On to the next thing.

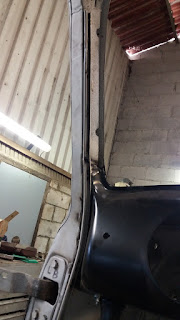

 In the picture above you see a rail on the edge of the door opening. That rail was straightened and welded back in place. It was previously removed to get out the side panel.

 Same thing with the other side. After welding the welds were ground flush.

 Next I started with the rear right corner of the cab. A piece was cut out. It was badly pitted and full of tiny holes.

 First I selected a piece of plate big enough for making a new part.

 It was cut to shape and then I started with the rough shaping of the part.

 After some time pounding shrinking and stretching the part is taking form.

We are not there yet but we are getting close. It will take some more time working the metal to have it like the original but we are getting there.

The chassis

Today I transported the Chassis of the pickup to an other location.

It is sandblasted primed and painted black.
Waiting for the next step.

A-pillar nr 2

Today we first started with Welding in some struts to hold the car together.
Then a large piece of metal was cut out to get access to the parts behind it.

 Next we cut off a bad piece of rail ( rusted trough) and replaced it with some new plate.

 Next a piece of the floor that has holes in it was cut out and new plates ar made and tacked in place.

 Then a piece of metal was formed bent cut and welded to extend the lower part of the door rail.

 Then we tackled the part that was cut out. We cut the larger piece up in small sections to be repaired. and this parts was first. On the picture below the new parts of metal are tacked in place.

 Then the big sheet with the holes in it.

 We cut it in pieces and kept the good part. Then we cut a plate and formed it into a new piece and that was tacked to the old one.

 Then the seems is fully welded ground a painted and put aside.

 We the welded the part we made earlier and finished it an painted it.

 Then the part that is part of the A-pilar where the bottom hinge is mounted. The lower portion was repaired and new metal welded in place.

 After The paint had dried we mounted all the pieces together and tacked them in place. We've taken some measurements to be sure everything is in place where it needs to bee and started the welding process.

 The inside and the outside.

 We are now ready to do some grinding and make the last part to put in place.

But that will be for another day.
